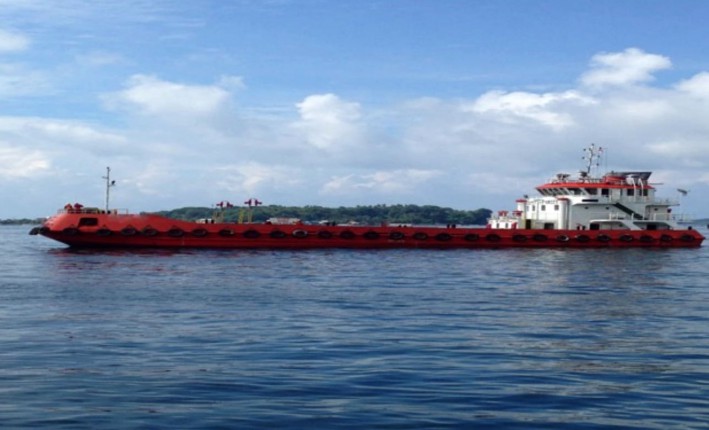

USED OIL TANKERDimensions
45.48 x 10.00 x 03.30 meters
Machinery
2 x 405 HP Yanmar 6HA2M-WDT
Build
2013
Status
Description
Download Technical Drawing
Download Drawing 1
| Vessel Code | : SPOB-45M13 |
| Flag | : Indonesia |
| Class | : BKI, RINA (under progress) |
| Year of Build | : 2013 |
| Length Over All | : 45.48 meters |
| Breadth Moulded | : 10.00 meters |
| Depth | : 3.30 meters |
| Draft | : 2.475 meters |
| GRT | : 407 Tons |
| Cargo Tank Capacity | : 350 m3 |
| Fresh Water Capacity | : 100 m3 |
| Fuel Oil Capacity | : 32 KL |
| Daily Tank | : 2.5 KL |
| Pipe Max. Load Capacity | : 95 m3 |
| Speed | : 7 Knots (service speed), 10 Knots (max. speed) |

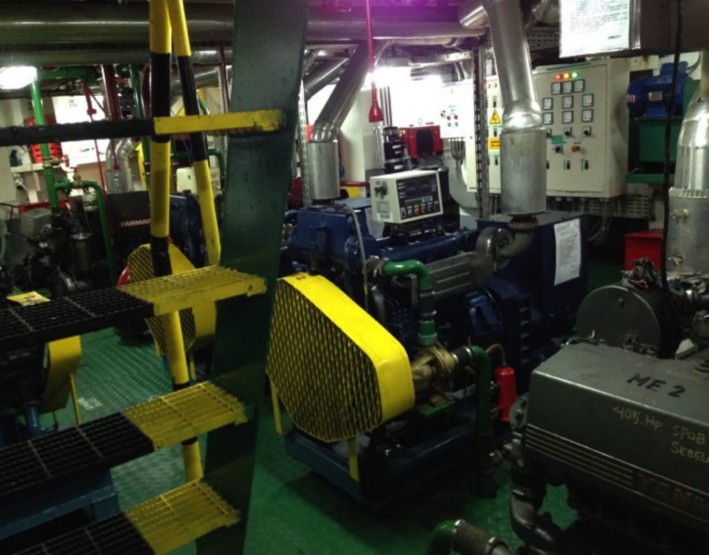

| Machinery | |
| Main engine | : 2 x 405 HP YANMAR 6HA2M-WDT |
| Gear Box | : 2 x TWIN DISC MG516DC (Ratio 5.05 : 1) |
| Auxiliary Engine | : 2 x 62.5 kVA/ 50 kW DEUTZ TD226B-4CD |
| Alternator | : STAMFORD |
| Type of Fuel | : Marine diesel oil |
| Propeller | : 2 x 4 blade Manganese Bronze |
| Stern Tube | : Bosses System-Line Boring |
| Rudder Stock | : AS ST 60 dia. 4.5 inches |
| Shafting | : 2 x dia. 4.5 inches, Stainless steel |

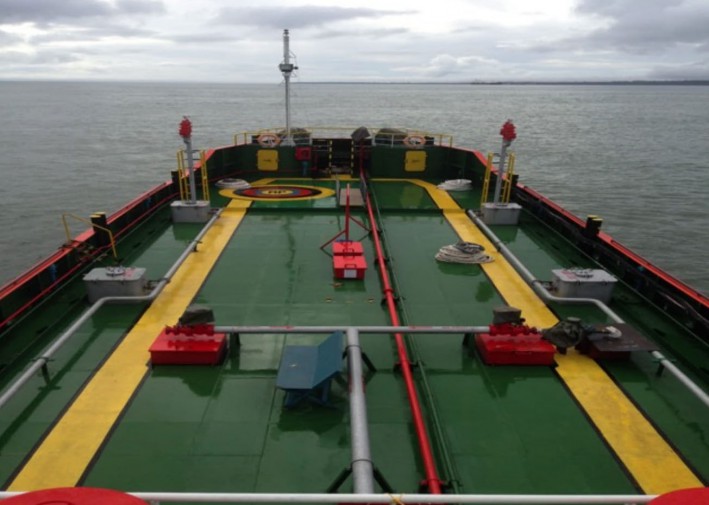

| Deck Equipment | |
| Steering Gear | : 1 x Electro hydraulic of 5 Tons |
| Windlass | : Double gypsy, Reducer: RRT 155 1:60 MELCO 11 kW 3 phase 1,450 rpm |
| Anchor | : 2 x 480 kg |
| Anchor Chain | : dia. 7/8 inches : 4 shackle (port) & 5 shackle (starboard) |

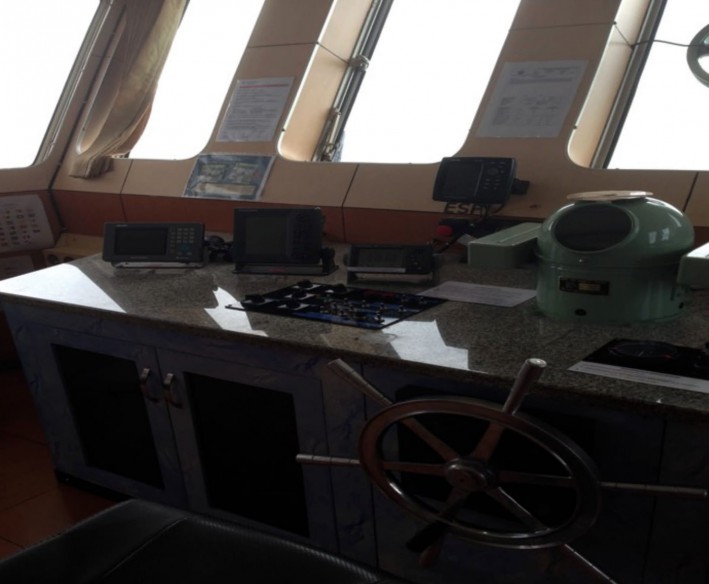

| Navigation & Communication Equipment | |
| Magnetic Compass | : DAIKO Japan 6” T150R |
| GPS | : FURUNO GP-32 |
| Radar | : FURUNO RDP1715 5” |
| Echo Sounder | : FURUNO FCV-627 |
| Navtex | : SAMYUNG SNX-300 |
| Radio SSB | : ICOM IC-M710 + Antenna Shakespire SS-393 |
| Radio VHF | : ICOM IC-M304 + Antenna Shakespire SS42C USA |
| Satellite Phone | : BYRU FR190M |
| Wind Indicator | : CLIPPER |
| Safety Equipment | |
| Life Raft | : 2 x Cap. 15 persons |
| Life Jacket | : 15 pcs |
| Life Buoy | : 8 pcs |
| Search Light | : 1,000 Watt |
| EPIRB | : Model GME MT403 |
| SART | : 2 x SAMYUNG |
| Man Over Board | : 2 pcs |
| Parachute Signal | : 6 pcs |
| Red Hand Flare | : 6 pcs |
| Smoke Signal | : 2 pcs |
| Gas Detector | : 1 Box Gas Detector Panel |
| Line Throwing | : 1 pc |
| Fire Fighting Equipment | |
| EEBD | : 2 sets (Emergency Escape Breathing Device) |
| Breathing Apparatus | : 2 x HUAYAN |
| Fire Extinguisher | : 3 x Dry powder @ 9 kg |
| : 3 x Foam @ 9 Liters | |
| Fixed CO2 System | : 2 x 45 kg |
| Fire Alarm Control | : 1 Box Control Panel |
| Sea Fifi Monitoring | : 3 sets |
| Fire Hose Box | : 4 Boxes c/w Jet & Spray Nozzle |
