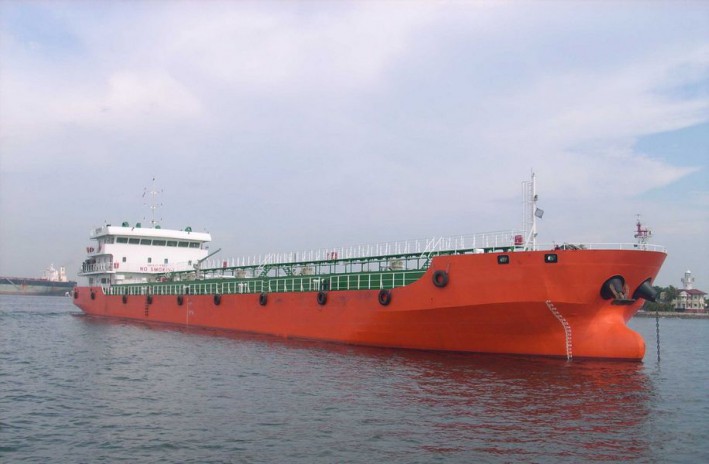

Self Propelled Oil Barge 88m12-1 | Ship Building Shipyard Factory Indonesia - Ratson

Vessel Code

: SPOB-88M12-1

Type of Ship

: SPOB (Self Propelled Oil Barge)

Nationality

: Indonesia

Class

: BKI

Built

: 2012

Type of Hull/Bottom

: Double Hull Double Bottom

Cargo Tank

: Steel

L O A

: 88.280 meters

L B P

: 83.540 meters

Breadth (moulded)

: 15.000 meters

Depth (moulded)

: 04.80 meters

Design Draft (moulded)

: 04.00 meters

Tropical Max Draft

: 04.073 meters (FW)

Tropical Max Draft

: 03.974 meters (SW)

Freeboard (Tropical)

: 727 mm

Freeboard (Summer)

: 810 mm

TPC Immersion

: 810 mm

Keel to Mast Head

: 24 meters

Air Draft (laden)

: 20 meters (14 + 6)

Air Draft (ballast)

: 22 meters (16 + 6)

Collapsible Mast

: 6 meters (ballast draft 2 m, laden draft 4 m)

G.R.T

: 2,177 tonnes

N.R.T

: 1,134 tonnes

D.W.T

: 3,200 tonnes

Light Weight

: 1,123.716 tonnes

Carrying Capacity

: 3,100 MT~ 4,148 cbm (98%)

Sludge Tank Capacity

: 1.2 cbm (starboard side)

Bildge Tank Capacity

: 1.0 cbm (starboard side)

Machinery

Main Engine

: 2 units x 750 PS Mitsubishi, Japan (Diesel : S6R2-MPTR)

Propeller

: 2 units

Auxiliary Engine

: 2 units x 48 kW (60 kVA) Mitsubishi, Japan

Cargo pump

: 2 units (capacity 120 MT/hour)

Pump BBM Cons

: 50 liters/hour or 1.2kL/day (for 2 pumps)

Cargo Segragation

: 2 Grade

Laden Speed

: 7 knots

Service rpm

: 1,300

Ballast Speed

: 7 knots

Max rpm

: 1,350
