USED LANDING CRAFT TANKDimensions
67.00 x 14.00 x 04.50 meters
Machinery
2 x 750 HP, 559 kW Caterpillar 3412D, @1,800 rpm
Build
2009
Status
Ready for inspection
Description

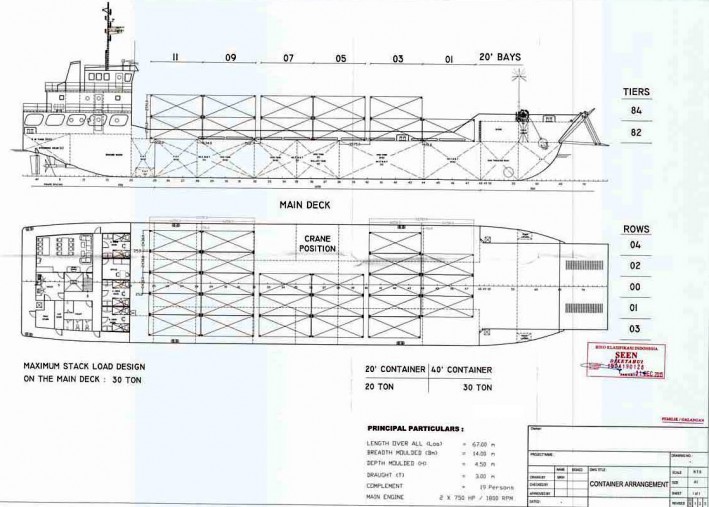

Download Technical Drawing
Download Drawing 1
| Vessel Code | : LCT-B67M09 |
| Type | : Landing Craft Tank |
| Class | : BKI |
| Port of Registry | : Jakarta, Indonesia |
| Built | : 2009 |
| Length Over All | : 67.00 meters |
| Breadth Moulded | : 14.00 meters |
| Depth Moulded | : 04.50 meters |
| Draft Max | : 02.90 meters |
| Speed | : 7 Knots |
| Accommodation | : 18 persons |
| GT/NT | : 1,142 tons / 343 tons |
| DWT | : 1,500 tons |
| Deck Area | : 600 SQM |
| Fuel Oil Tank Cap. | : 219 tons |
| Fresh Water Tank Cap. | : 70 tons |
| Machinery | |
| Main Engine | : 2 x 750 HP, 559 kW Caterpillar 3412D, @1,800 rpm |
| Gear Box | : Twin Disc MG5225-DC Ratio 5.04:1 |
| Propeller | : 2 fixed pitch propelle, 4 blades |
| Auxiliary Engine | : 2 x 86 kW, 380 V Caterpillar C4.4 |
| : 1 x 405 kW Caterpillar 3412 C (Deck Crane) | |
| Deck Crane | : MacGregor SWL 25 T, at max 19 m outreach |
| Harbor Genset | : 1 x 30 kVA, 24 kW Peugeot Citroen Moteure |
| Fuel Consumption | : Max 5.50 tons/day |
| Navigation | |
| EPIRB SART | : MC Murdo |
| Radar | : JRC |
| Sounder | : Fishfinder 160 C |
| VHF | : ICOM |
| SSB | : ICOM |
| Safety Equipment | |
| Ring Buoy | : 6 pcs |
| Life jacket | : 25 pcs |
| Inflammable Life Raft | : 2 units |
| Fixed CO2 system | : 1 unit |
| CO2 Horn | : 1 unit |
| Emergency Fire Pump | : Cap.30 m2/hour |
| Hydrant | : 9 units |
| Portable | : Dry Chemical & Foam |
